Apparatus 5(Paddle over Disk)

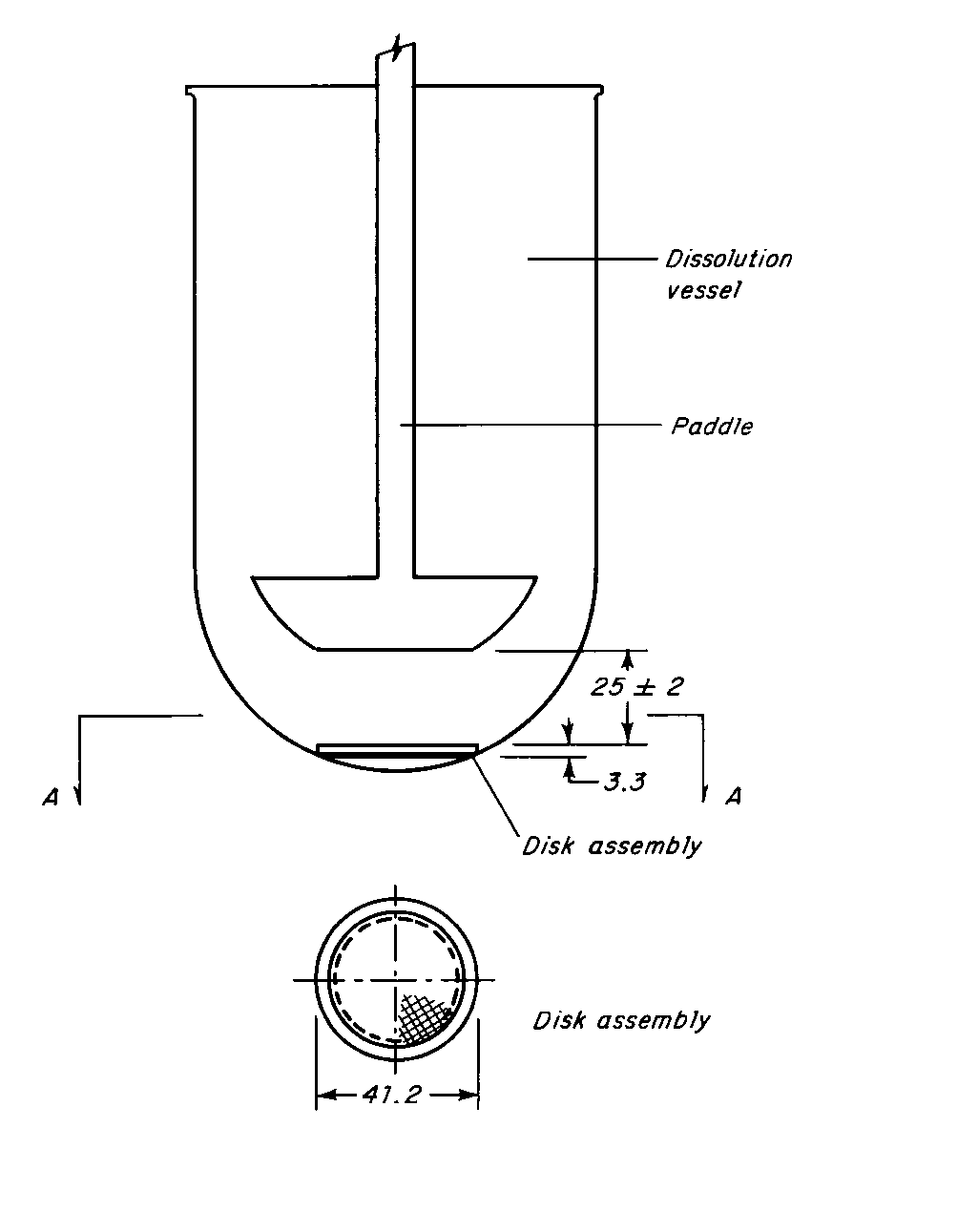

Apparatus— Use the paddle and vessel assembly fromApparatus 2as described underDissolution á711ñ,with the addition of a stainless steel disk assembly 1designed for holding the transdermal system at the bottom of the vessel.Other appropriate devices may be used,provided they do not sorb,react with,or interfere with the specimen being tested 2.The temperature is maintained at 32±0.5.Adistance of 25±2mm between the paddle blade and the surface of the disk assembly is maintained during the test.The vessel may be covered during the test to minimize evaporation.The disk assembly for holding the transdermal system is designed to minimize any “dead”volume between the disk assembly and the bottom of the vessel.The disk assembly holds the system flat and is positioned such that the release surface is parallel with the bottom of the paddle blade (seeFigure 4).

Apparatus Suitability Test and Dissolution Medium— Proceed as directed forApparatus 2underDissolution á711ñ.

Procedure— Place the stated volume of theDissolution Medium in the vessel,assemble the apparatus without the disk assembly,and equilibrate the medium to 32±0.5.Apply the transdermal system to the disk assembly,assuring that the release surface of the system is as flat as possible.The system may be attached to the disk by applying a suitable adhesive3to the disk assembly.Dry for 1minute.Press the system,release surface side up,onto the adhesive-coated side of the disk assembly.If a membrane4is used to support the system,it is applied so that no air bubbles occur between the membrane and the release surface.Place the disk assembly flat at the bottom of the vessel with the release surface facing up and parallel to the edge of the paddle blade and surface of theDissolution Medium.The bottom edge of the paddle is 25±2mm from the surface of the disk assembly.Immediately operate the apparatus at the rate specified in the monograph.At each sampling time interval,withdraw a specimen from a zone midway between the surface of theDissolution Mediumand the top of the blade,not less than 1cm from the vessel wall.Perform the analysis on each sampled aliquot as directed in the individual monograph,correcting for any volume losses,as necessary.Repeat the test with additional transdermal systems.

Time— The test time points,generally three,are expressed in hours.Specimens are to be withdrawn within a tolerance of ±15minutes or ±2%of the stated time,the tolerance that results in the narrowest time interval being selected.

Interpretation— Unless otherwise specified in the individual monograph,the requirements are met if the quantities of active ingredient released from the system conform toAcceptance Table 4for transdermal drug delivery systems.Continue testing through the three levels unless the results conform at eitherL1orL2.

Apparatus 6(Cylinder)

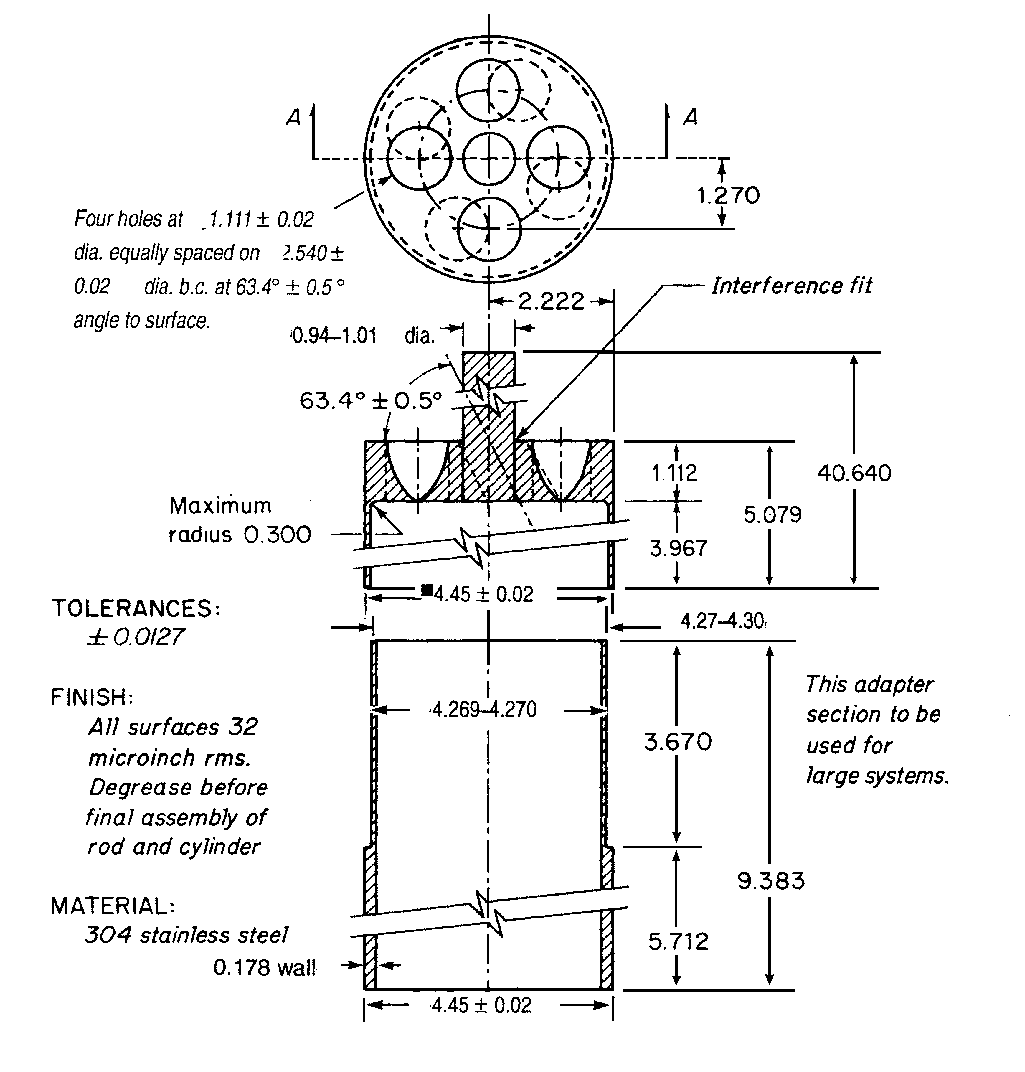

Apparatus— Use the vessel assembly fromApparatus 1as described underDissolution á711ñ,except to replace the basket and shaft with a stainless steel cylinder stirring element and to maintain the temperature at 32±0.5during the test.The shaft and cylinder components of the stirring element are fabricated of stainless steel to the specifications shown inFigure 5.The dosage unit is placed on the cylinder at the beginning of each test.The distance between the inside bottom of the vessel and the cylinder is maintained at 25±2mm during the test.

Dissolution Medium— Use the medium specified in the individual monograph (seeDissolution á711ñ).

Procedure— Place the stated volume of theDissolution Medium in the vessel of the apparatus specified in the individual monograph,assemble the apparatus,and equilibrate theDissolution Medium to 32±0.5.Unless otherwise directed in the individual monograph,prepare the test system prior to test as follows.Remove the protective liner from the system,and place the adhesive side on a piece of Cuprophan4that is not less than 1cm larger on all sides than the system.Place the system,Cuprophan covered side down,on a clean surface,and apply a suitable adhesive3to the exposed Cuprophan borders.If necessary,apply additional adhesive to the back of the system.Dry for 1minute.Carefully apply the adhesive-coated side of the system to the exterior of the cylinder such that the long axis of the system fits around the circumference of the cylinder.Press the Cuprophan covering to remove trapped air bubbles.Place the cylinder in the apparatus,and immediately rotate at the rate specified in the individual monograph.Within the time interval specified,or at each of the times stated,withdraw a quantity ofDissolution Mediumfor analysis from a zone midway between the surface of theDissolution Medium and the top of the rotating cylinder,not less than 1cm from the vessel wall.Perform the analysis as directed in the individual monograph,correcting for any volume losses as necessary.Repeat the test with additional transdermal drug delivery systems.

Time— Proceed as directed underApparatus 5.

Interpretation— Unless otherwise specified in the individual monograph,the requirements are met if the quantities of active ingredient released from the system conform toAcceptance Table 4for transdermal drug delivery systems.Continue testing through the three levels unless the results conform at eitherL1orL2.

Apparatus 7(Reciprocating Holder)

NOTE—This apparatus may also be specified for use with a variety of dosage forms.

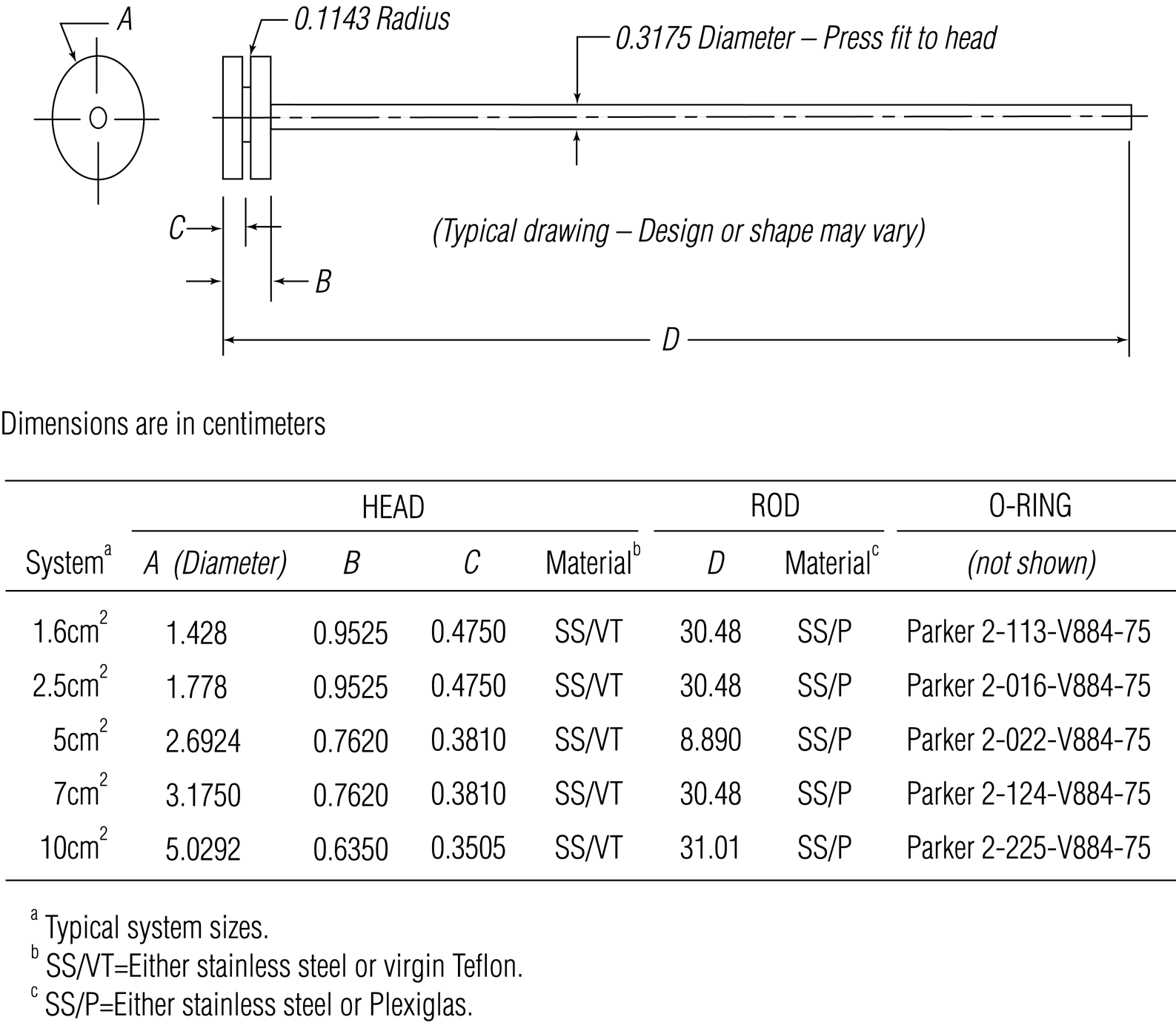

Apparatus— The assembly consists of a set of volumetrically calibrated or tared solution containers made of glass or other suitable inert material6,a motor and drive assembly to reciprocate the system vertically and to index the system horizontally to a different row of vessels automatically if desired,and a set of suitable sample holders (see Figure 67and Figures 7a–7d).The solution containers are partially immersed in a suitable water bath of any convenient size that permits maintaining the temperature,T,inside the containers at 32±0.5or within the allowable range,as specified in the individual monograph,during the test.No part of the assembly,including the environment in which the assembly is placed,contributes significant motion,agitation,or vibration beyond that due to the smooth,vertically reciprocating sample holder.Apparatus that permits observation of the system and holder during the test is preferable.Use the size container and sample holder as specified in the individual monograph.

Dissolution Medium— Use theDissolution Medium specified in the individual monograph (seeDissolution á711ñ).

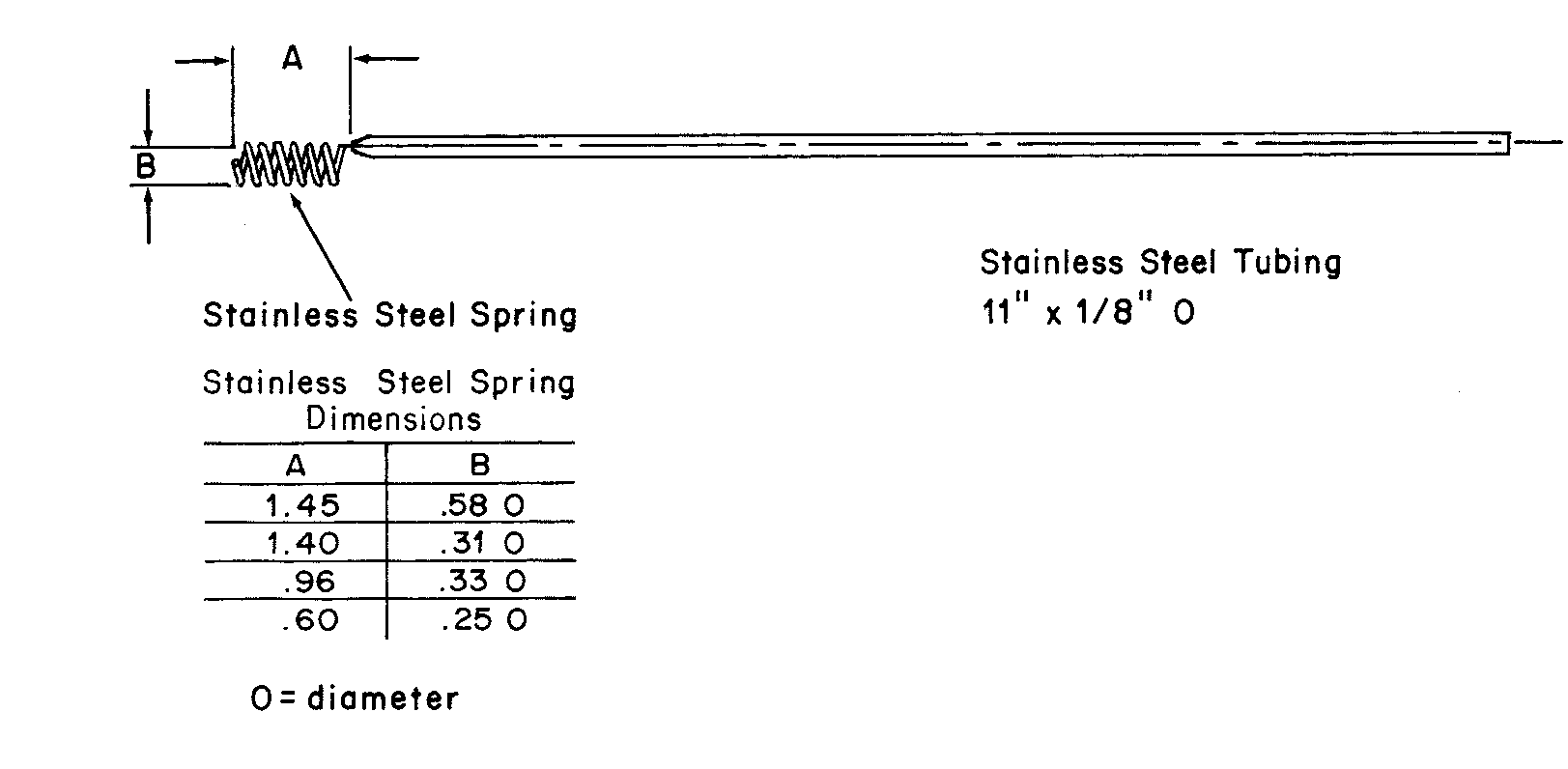

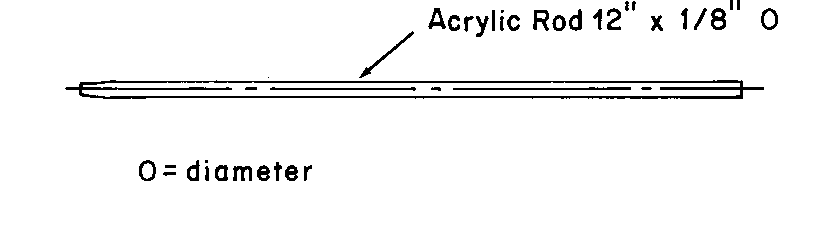

Sample Preparation A(Coated tablet drug delivery system)— Attach each system to be tested to a suitable sample holder (e.g.,by gluing system edge with 2-cyano acrylate glue onto the end of a plastic rod or by placing the system into a small nylon net bag at the end of a plastic rod or within a metal coil attached to a metal rod).

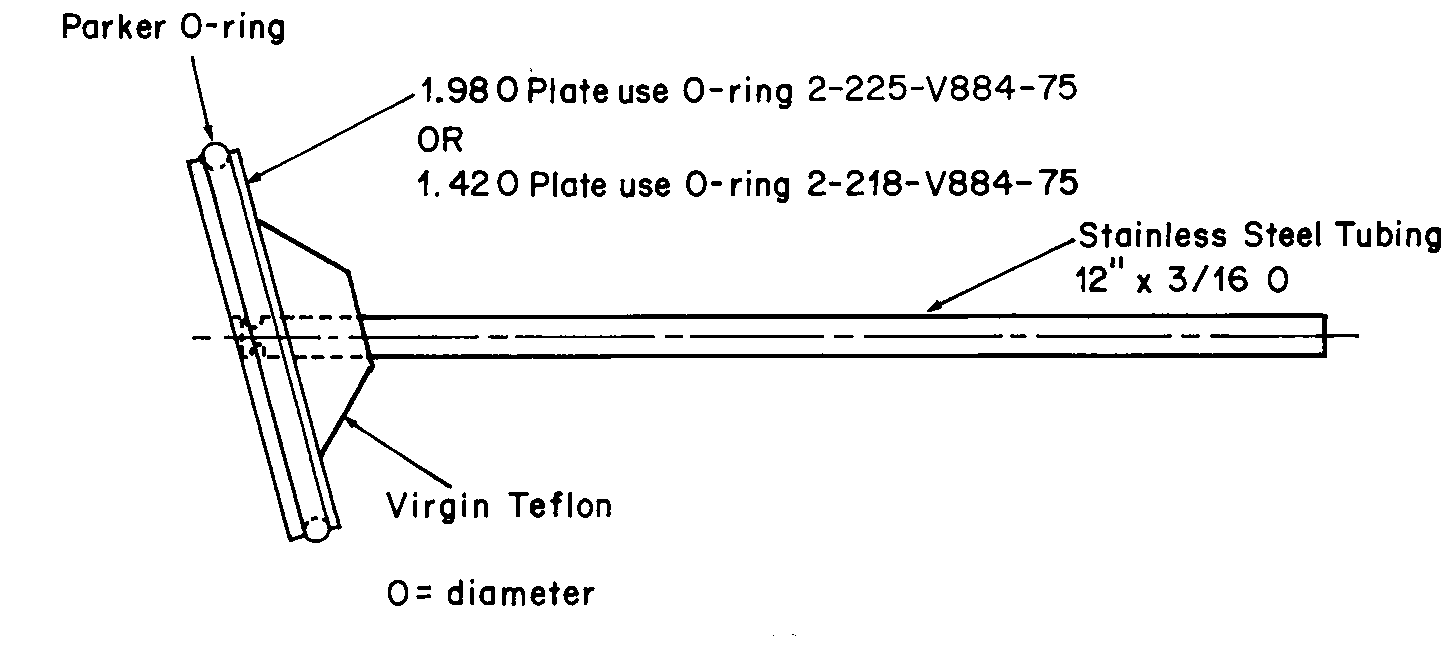

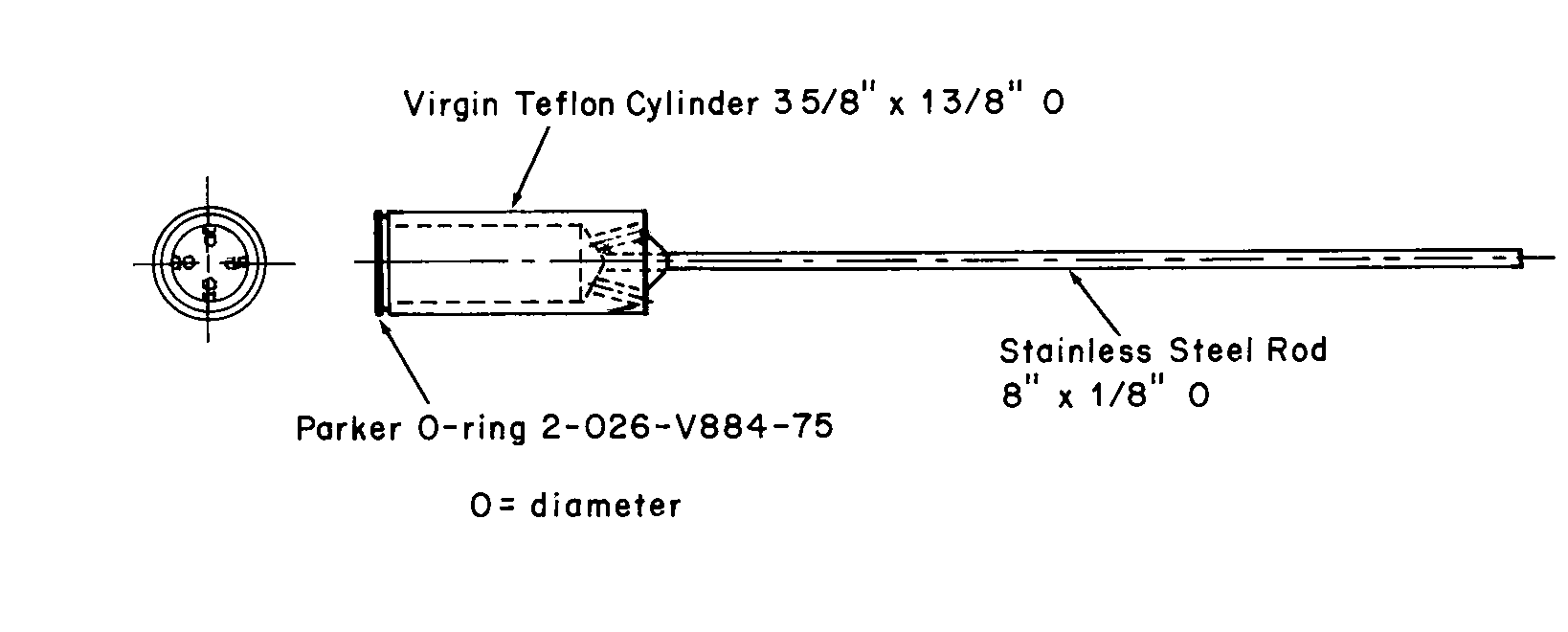

Sample Preparation B(Transdermal drug delivery system)— Press the system onto a dry,unused piece of Cuprophan4,nylon netting,or equivalent with the adhesive side against the selected substrate,taking care to eliminate air bubbles between the substrate and the release surface.Attach the system to a suitable sized sample holder with a suitable O-ring such that the back of the system is adjacent to and centered on the bottom of the disk-shaped sample holder or centered around the circumference of the cylindrical-shaped sample holder.Trim the excess substrate with a sharp blade.

Sample Preparation C(Other drug delivery systems)— Attach each system to be tested to a suitable holder as described in the individual monograph.

Procedure— Suspend each sample holder from a vertically reciprocating shaker such that each system is continuously immersed in an accurately measured volume ofDissolution Mediumwithin a calibrated container pre-equilibrated to temperature,T.Reciprocate at a frequency of about 30cycles per minute with an amplitude of about 2cm,or as specified in the individual monograph,for the specified time in the medium specified for each time point.Remove the solution containers from the bath,cool to room temperature,and add sufficient solution (i.e.,water in most cases)to correct for evaporative losses.Perform the analysis as directed in the individual monograph.Repeat the test with additional drug delivery systems as required in the individual monograph.

Interpretation— Unless otherwise specified in the individual monograph,the requirements are met if the quantities of the active ingredients released from the system conform toAcceptance Table 1for coated tablet drug delivery systems,toAcceptance Table 4for transdermal drug delivery systems,or as specified in the individual monograph.Continue testing through the three levels unless the results conform at eitherL1orL2.
